QUICKIE QS5 XFolding Wheelchair

Experience FreeFold and save over 40% energy with every fold!

3D Visualiser

Experience FreeFold and save over 40% energy with every fold!

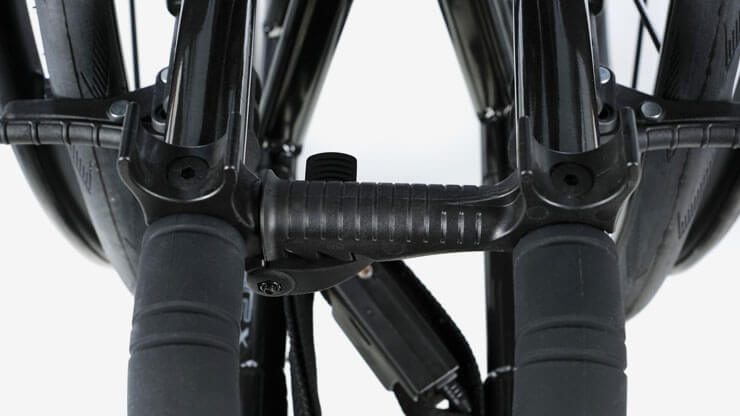

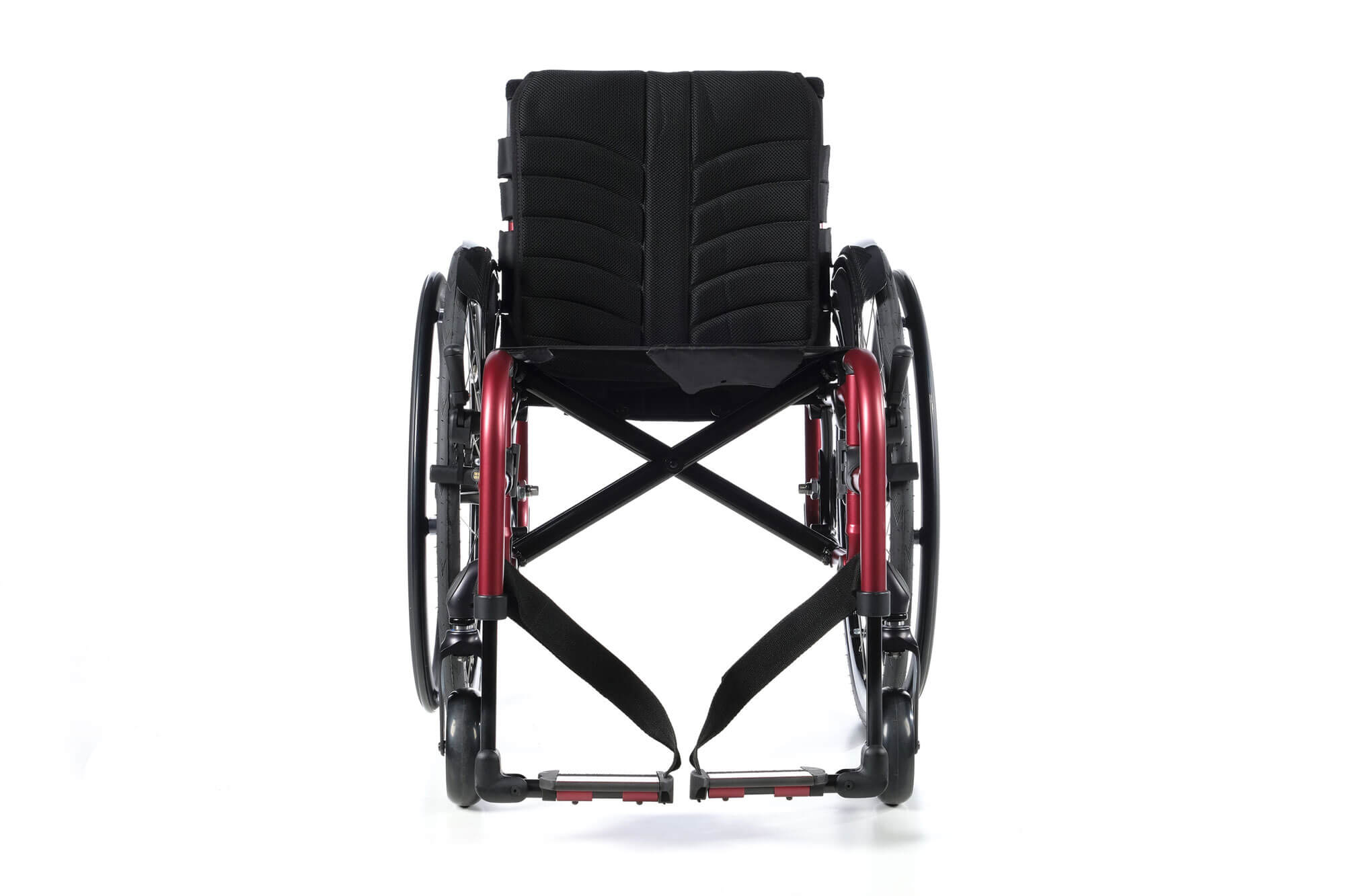

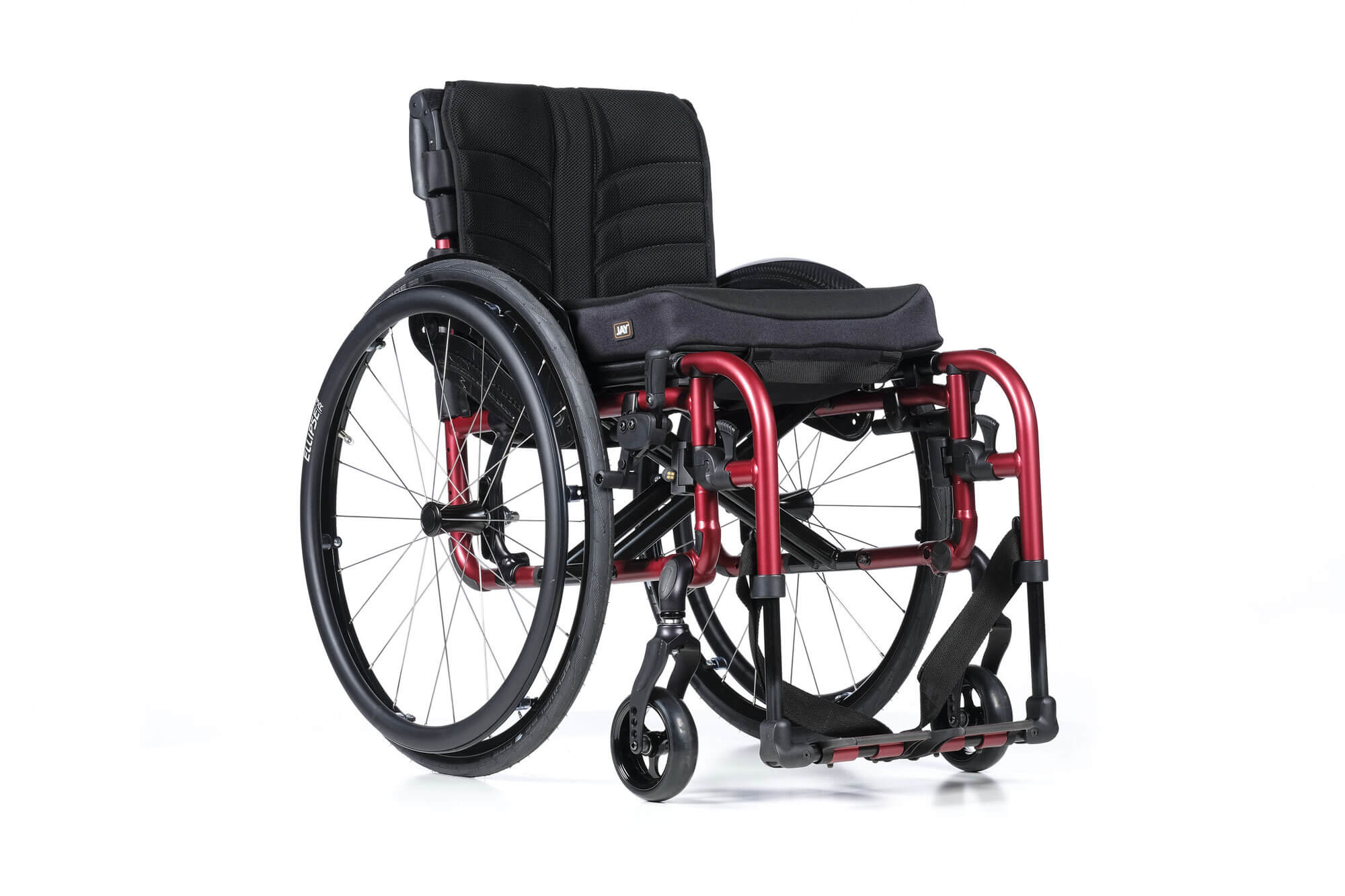

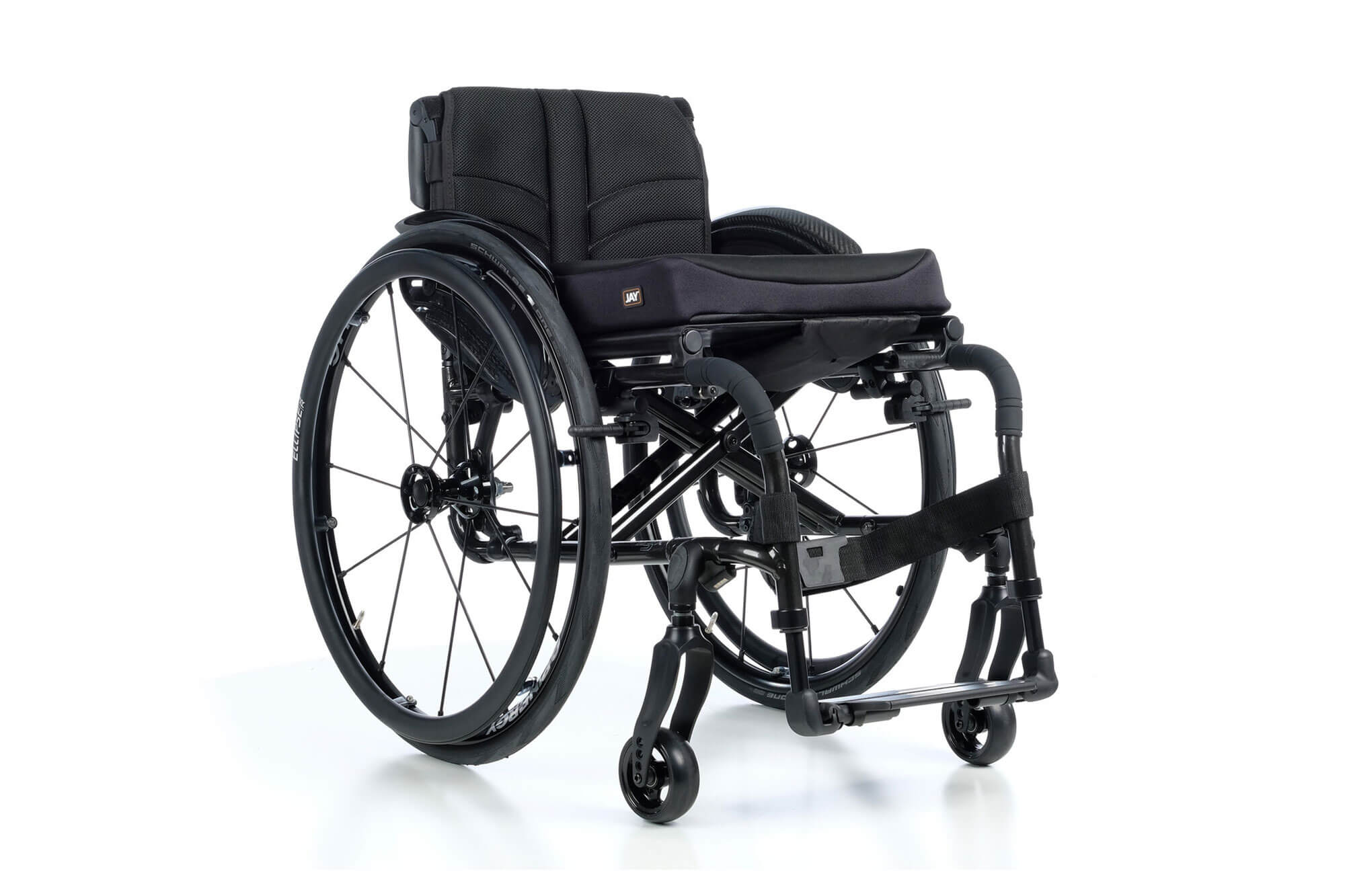

Introducing the QUICKIE QS5 X, the wheelchair that redefines easy folding thanks to FreeFold - an innovative cross-brace design that reduces folding forces and saves you over 40% energy with every fold! The QS5 X makes light work of lifting too, with an (optional) folding fixation that keeps your wheelchair tightly-locked to prevent any unintentional opening during transport.

Weighing from just 7.3 kg (without wheels), it's the lightest aluminum box frame wheelchair too. Made from heat-treated 7000 series Aluminium, lock-out the frame and its oval-tubed 4-arm cross brace provides the ride performance to rival any rigid wheelchair. Saving not just energy, but your shoulders too.

Request a brochure or demo

From £1500

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorised dealer for a detailed quote.

3D Visualizer

Unleash your individuality and create your own QS5 X!

From push handles to castor forks, our online QUICKIE QS5 X visualizer will help you to create the QS5 X of your dreams! Style your ride with 24 vibrant frame colours, 4 castor fork and 4 rim colours. You can even match your cross-brace colour to your frame! Just click the button below to begin.

Start

Unleash your individuality and create your own QS5 X!

Folding Performance

FreeFold - Over 40% energy saved with every fold.

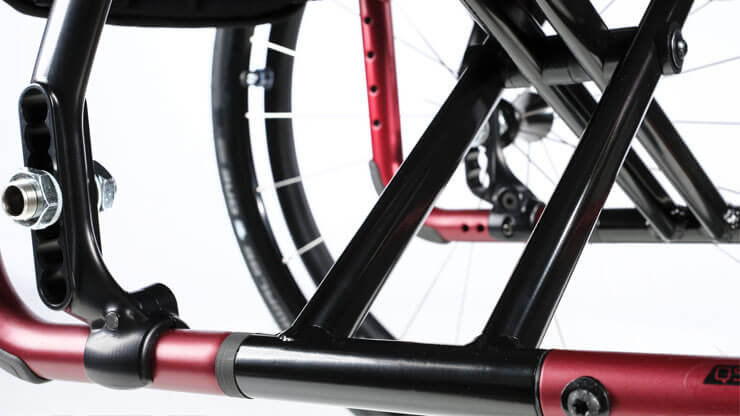

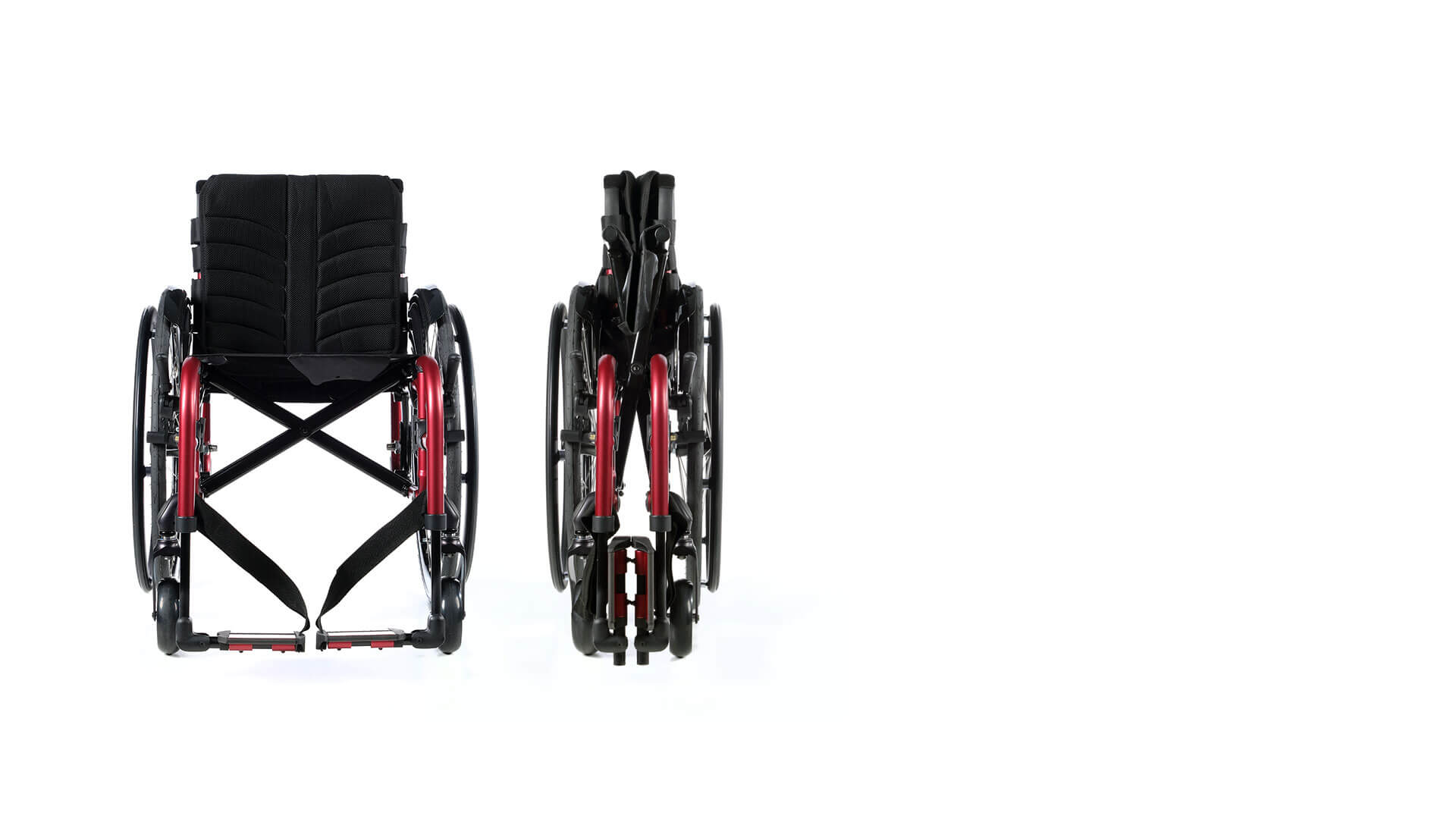

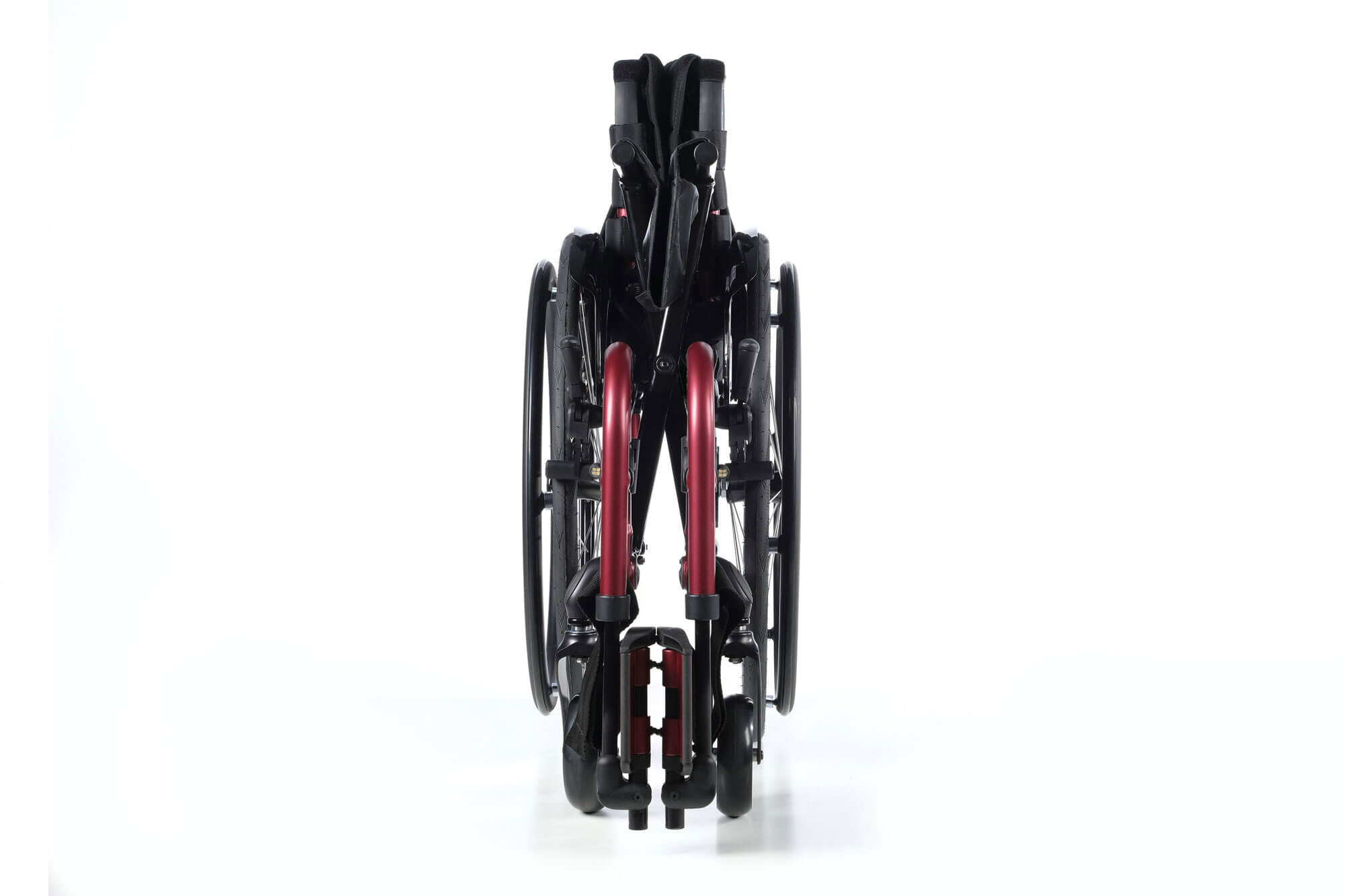

Easy to fold and stays folded - thanks to the innovative FreeFold feature. FreeFold stands for sophisticated and precise engineering of the folding geometry, resulting in particularly little force when folding and unfolding. During folding, the wheel camber does not change and the folded wheelchair stands solidly on the ground - a real benefit if you are frequently folding and transporting your QS5 X.

More Features

FreeFold - Over 40% energy saved with every fold.

Lightweight

Easy propelling and lifting with the featherweight QS5 X.

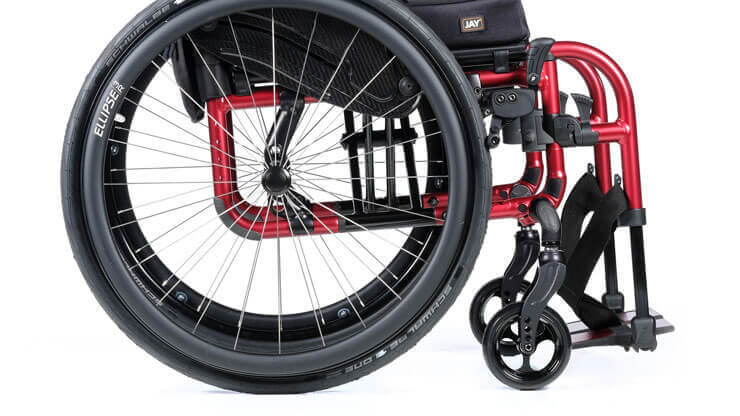

Unrivaled lightweight - A remarkably low transport weight from 7.3 kg for the Fixed Front and 7.5 kg for the Swing Away frame! The QS5 X as the lightest aluminum folding box frame on the market is not only comfortable to lift, transport but also effortless to self-propel to increase the rider’s energy efficiency. The material and construction make all the difference – strong doesn‘t always have to mean heavy. The frame of the QS5 X is made of high-grade 7000 series aluminum, designed for an exceptionally high strength-to-weight ratio and is used in many aerospace applications where strength, durability and weight are essential factors.

More Features

Frame Versions

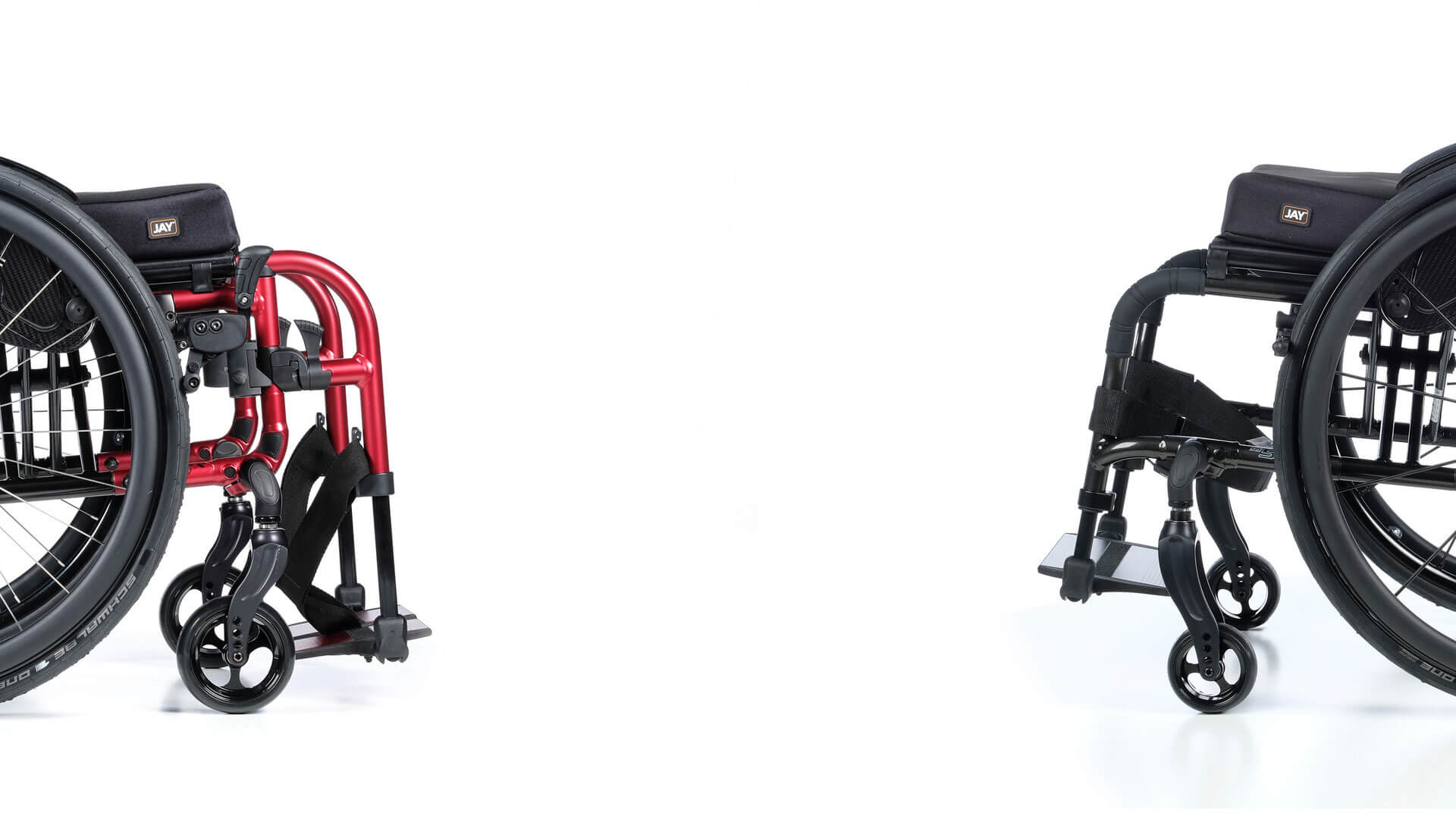

Fixed-Front or Swing-Away?

The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.

The Fixed-Front version has footrests that are permanently attached to the chair frame, providing additional stability and support. This feature can be particularly beneficial for people with higher positioning demands, as it helps to keep the legs in an ideal position.

The Swing-Away version has footrests that can be swung away to the side, which enables a safe and comfortable transfer into the chair, especially from a standing position. By removing the footrest, it´s possible to position the wheelchair closer to the object you want to transfer on, furthermore the pack-size of the wheelchair will be minimised.

Smart Options

Bright removable LED lights.

In many situations, it’s good to have your own light - if you need to go to the bathroom at night and don’t want to illuminate the whole apartment, or if you’re on your way home in the evening and need to see obstacles that could throw you off balance. The QS5 X’s LED lights are a great solution! Discreetly integrated into the overall design of your QS5 X, and removable for charging, the LED lights provide a great feature to light your way when you need them!

More Options Visualise Yours

Arrange a QUICKIE QS5 X demonstration today.

Just want a brochure? Select the option below and we'll email you one instead. Read more about our data processing guidelines on our privacy policy.

DemonstrationBrochure

How do we use your information for a demonstration?

Sunrise Medical will use your details to send you an email acknowledgement and identify your nearest dealership. We will share your details with that dealership to enable them to fulfil your demonstration request and contact you by phone and/or email. The information you give us will be stored in the UK and will be kept as long as necessary to fulfil your request (and no-longer than 1 year).

Sign up for email newsletters

Yes, I consent to receive email newsletters about products, services, promotions, news, events and useful resources. What does this mean?

Media

Specifications

Dimensions

Width:SW + 180/240/270 mm at 0, 2, 4° camber and 25" wheels

Length:1113 mm

Height:1020 mm

Seat Width:340 - 520 mm (in 20 mm steps)

Seat Depth:340 - 500 mm

Front seat height:360 - 540 mm

Rear seat height:350 - 520 mm

Backrest Height:250 - 500 mm

Frame Angle:Swing Away: 70/80/90°, Fixed-Front: 75/85°

Maximum Safe Slope:7°

Rear Wheel Size:22", 24", 25", 26"

Front Wheel Size:4", 5", 6", 7"

Performance/Weights

Frame Type:Folding

Frame Version:Swing Away / Fixed Front

Material:7000 Series Aluminium

Maximum User Weight:140 kg

Total Weight:Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg

Dismantled Weight:Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)

Transportation

Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
