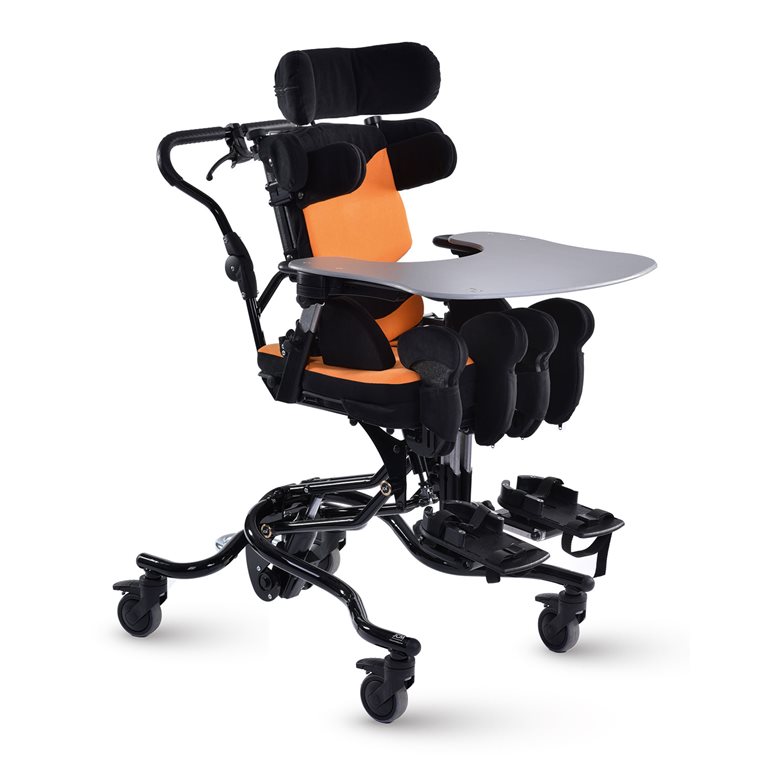

JCM TritonSeating System

The stylish seating system to meet complex postural needs

The Triton seating system has been specifically designed to accommodate the needs of those users with extensive and complex requirements. A split seat as standard ensures leg length discrepancy is precisely supported, and the option of uniquely designed dynamic components means that even those users with powerful extensor patterns can maintain their optimum seating position.

The dynamic feature in the back rest is controlled via air pressure, for both the rate at which it opens under pressure from the user, as well as the rate at which it returns to its default position. These features give the Triton a controlled, gentle movement with the flexibility to meet any changing needs of the user as they grow or their presentation changes.



To view our 'How To Videos' please see documentation section at the bottom of the page.

Request Brochure
JCM Triton Seating System for Kids
Modular Design meets Complex Needs

Modular Design meets Complex Needs

The JCM Triton is quick and easy to configure, and caters for the most extensive seating requirements.  Its modular, versatile design with great features such as detachable back and leg rests makes it fast and simple to configure to meet the user’s exact specification.

The Triton is highly adjustable, changing precisely with the user’s needs. As standard, the Triton has a multi directional sacral pad to accommodate rotation in the hips, adjustable angle leg rest mounting  to facilitate uni-lateral positioning and back angle adjustment, which is separate to tilt in space. Superior Dynamics options for the backrest and footplate are also available to give the chair controlled, gentle movements and improve sensory experience.

Triton Dynamix

Triton Dynamix

Unique to the Triton, superior dynamics is available as an option on both the back and footplate. The unique dynamic back is easily adjusted to control the level of resistance the user feels as they extend in the chair. This mechanism is not a spring action, as commonly used on dynamic chairs, but is air pressure controlled and the rebound is also adjustable so the back moves in harmony with the user rather than pushing them forward as they relax. These features give the chair a controlled, gentle movement with the flexibility to adjust the system as the user grows or presents differently.

The dynamic option in the footplate allows the footplate to move slightly in any direction, improving sensory experience whilst at the same time creating a more robust footprint for those heavy users, helping to ensure their position is maintained and helping to increase longevity in the product.

Wide Range of Accessories

Wide Range of Accessories

Available with a wide range of accessories, which you can add on or take off as required, the Triton is tailored to the child’s specific needs. This allows you to bespoke build each Triton based on the individual size and specification. Accessories available include multi adjustable headrest, dynamic footplate, ankle huggers, activity frame and many more. The Triton is also available in a wide selection of upholstery colours, allowing the child to choose their favourite.
Take a look at the Triton Order Form for more details.

Mobility Bases to Suit

Mobility Bases to Suit

The Triton seating system can be easily mounted onto a range of mobility bases, depending on the child’s needs. For tilt in space wheelchairs, the Triton can be used on the Zippie RS, which offers 45° of tilt and the Quickie Iris, offering 55° of intelligent rotation in space technology. The Triton can also be used on powerchair bases, such as the Zippie Salsa M2 Mini, the world’s narrowest mid wheel drive powerchair, which offers 30° tilt as an extra option. In addition, the Triton can also be mounted on the JCM 5 Star Base, Multi Height & Tilt Base and the Multi Height and Tilt Transit Base, meaning there is plenty of choice to choose from.

Receive a Brochure and Price Guide by Email

Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

Dimensions
Seat Width:Size 0: 260mm Size 1: 315mm Size 2: 395mm Size 2L: 395mm Size 3: 475mm
Seat Depth:Size 0: 150 - 275mm Size 1: 200 - 350mm Size 2: 300 - 450mm Size 2L: 415 - 565mm Size 3: 415 - 565mm
Seat Height:420 - 810mm
Seat Tilt:-15 to 25 degrees
Backrest Height:Size 0: 290 - 375mm Size 1: 300 - 440mm Size 2: 390 - 560mm Size 2L: 480 - 680mm Size 3: 480 - 680mm
Back Recline:Sizes 0, 1, 2 & 3: -5 to 40 degrees. Size 2L: -5 to 25 degrees
Weights
Maximum User Weight:Size 0: 41kg (compact base) 46kg Size 1: 60kg Size 2: 60kg Size 2L: 80kg Size 3: 80kg
Total Weight:Size 0: 11kg Size 1: 14.5kg Size 2: 19.1kg Size 2L: 19.1kg Size 3: 22.5kg

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
