Union

The perfect combination of foam and fluid

The JAY UNION is a medium to high risk skin protection cushion offering enhanced stability and comfort based on fundamental seating principles and advanced design technology from the JAY Balance.

Features include:

  • JAY optimum seat well technology
  • Rear wall with sacral notch cut out
  • Deeply contoured, multi-layered contoured foam base
  • JAY flow fluid technology
  • New MemGel memory foam top layer
  • Innovative dual cover technology
  • Two height options
  • High maximum user weight
Request Brochure Options & Prices

From £250

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorised dealer for a detailed quote.

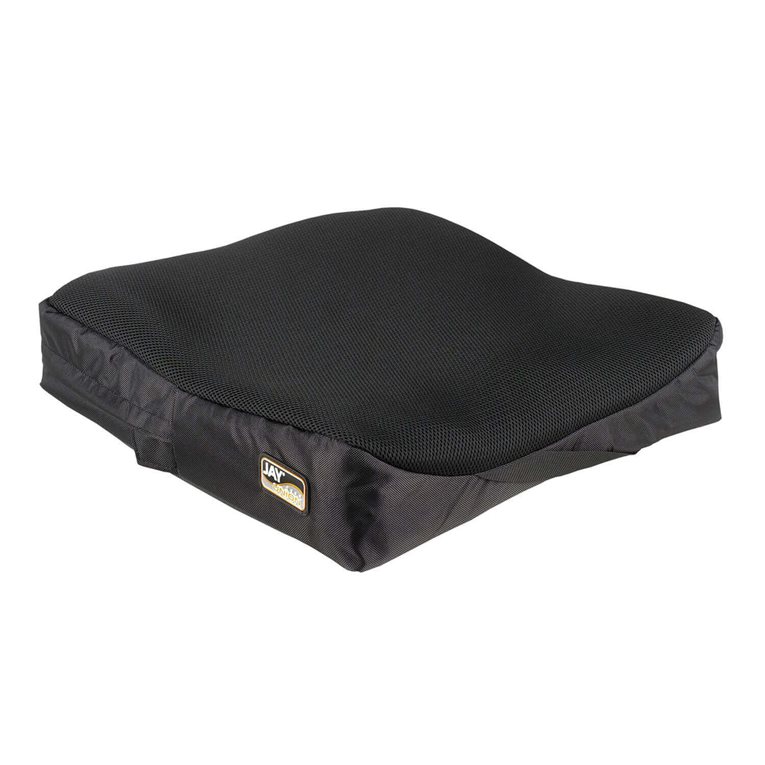

JAY Union Wheelchair Cushion
JAY Optimum Seat Well Technology & Rear Wall with Sacral Notch Cut Out

JAY Optimum Seat Well Technology & Rear Wall with Sacral Notch Cut Out

The 2" deep anatomically shaped seat well increases pelvic and thigh stability and re-distributes pressure. This key feature is unique to JAY and separates it from other conventional medium to high risk skin protection cushions. The front and rear well walls have been designed specifically to prevent fluid migration and also reduce pressure around the sacral area. This design also helps keep the fluid where it is needed. Conventional medium risk cushions often struggle to prevent 'bottoming out' due to fluid migration when the seat is tilted.

For optimised immersion for each individual, the JAY Seat Well size and firmness of the foam are automatically determined by cushion width and correspond directly with user weight. The result is a simple to order cushion that effectively meets the needs of smaller, lighter users through to larger, heavier users.

New MemGel® Memory Foam Topper

New MemGel® Memory Foam Topper

The 1" thick overlay of gel infused swirled MemGel® foam has several functions. Unlike conventional solid visco cushions, the MemGel® topper increases the immersion of the pelvis and thighs to spread pressure more evenly whilst preventing heat build up and compromising on lateral stability.

Innovative MemGel® effectively reduces heat and moisture by increasing air flow through the surface, whilst the gel absorbs the heat thereby enhancing user comfort and function.

JAY Flow™ Fluid Insert Technology

JAY Flow™ Fluid Insert Technology

The JAY Flow fluid insert that lies beneath the Visco™ foam conforms to each individual's unique contours for even pressure distribution beneath the pelvis and a reduced risk of skin breakdown. This cushion offers great pressure relief with no maintenance.

Deeply Contoured, Multi-layered Foam Base

Deeply Contoured, Multi-layered Foam Base

The more aggressively contoured base, deeper seat well and 1" lateral hip supports improve positioning of the pelvis and thighs.

Innovative Dual Cover Technology

Innovative Dual Cover Technology

The water-resistant dartex inner cover with aqua guard zipper and anti-wicking thread protects the base foam from water ingress. It is easy to clean, enhances durability and meets infection control requirements.

The microclimatic outer cover features 3DX and spacer fabrics to improve breathability and reduce moisture build up and skin breakdown. Conventional mid range visco cushions struggle to effectively reduce heat build up when sat for longer periods.

Two Heights

Two Heights

Unlike conventional mid range cushions, the UNION is available in two heights, standard and reduced profile (1” lower) – making it ideal for manual or power chair users.

Receive a Brochure and Price Guide by Email

Under 18? Please don't provide us with any personal information. Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

Dimensions
Width:360 - 600 mm
Height:At tallest part – lateral edge is 110mm (Standard height version), At tallest part – lateral edge is 90mm (Reduced profile version)
Depth:360 - 600 mm
Weights
Maximum User Weight:136kg (21 stone) up to SW 500mm, 227kg (35 stone) up to SW 520 - 600 mm
Product Options
Cover Type:Inner: Dartex® coated Lycra® / Outer: Microclimatic with 3DX spacer fabric

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Frequently Asked Questions

'C' stands for curved and 'F' stands for flat. A C-pad has a curved bottom and is suitable for wheelchairs with "sling seats" (usually on manual wheelchairs). The F-pads have a flat bottom and are suitable for wheelchairs with a base (usually on comfort wheelchairs and electric wheelchairs). An F-pad can be supplemented with an insert plate if it is to be used in a wheelchair with a sling seat.

Yes like all gels. That's why we recommend not to leave a gel cushion in a car in a very cold weather. If you forget it, then leave it at room temperature so the gel regains its fluidity.

Occupational therapists will be able to assist you and advise in regards to good positioning - and what would be the correct equipment to use.

There are numerous advantages, including the greater postural support and a good alignment of the back structure. Pressure distribution is also improved, and also stability, comfort and functionality.

They are many and varied factors - the main ones include immobility, pressure, friction on the skin, heat, perspiration, humidity, low nutrition, dehydration, atrophied muscles and aging of the skin.
