Q400 M SEDEO LITE Mid-Wheel Powered Wheelchair

Advanced outdoor/indoor performance

Advanced outdoor/indoor performance

The new QUICKIE Q400® M effortlessly balances great outdoor manoeuvrability with very good indoor performance. All of these combined with the benefits of the multi adjustable SEDEO® LITE seating and the most advanced controls, creates the perfect powered wheelchair for a safe driving experience.

Contact

Reliable mid-wheel drive technology

Enjoy the most comfortable and safe driving experience with the new QUICKIE Q400 base. Great outdoor manoeuvrability due to its motors combined with 6 wheels suspension and a compact turning radius. Very good indoor performance thanks to its compact turning radius.

Superb indoor agility

Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a turning circle of 112cm. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 415 mm.

Outstanding outdoor performance

Enjoy a smooth and stable ride, even over rough terrain, with QUICKIE's patented all-wheel suspension - six independently suspended wheels absorb all those bumps.

QUICKIE's anti-pitch technology eliminates pitching on slopes, and with all your weight located directly above the drive wheel to maximise traction you've never been in a safer driving position.

The power to get you where you want to go.

Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 6 kph as standard, or upgrade to 10 kph (low torque) for the ultimate performance. Plus, with a choice of 50 Ah, 60 Ah or 80 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!

With ultra-reliable high torque 4-pole motors powering speeds of 6 or 10 kph and a choice of 50 Ah, 60 Ah or 80 Ah batteries to maximise your range, you can always travel in confidence with the Q400 M SEDEO LITE.

Reliable mid-wheel drive technology

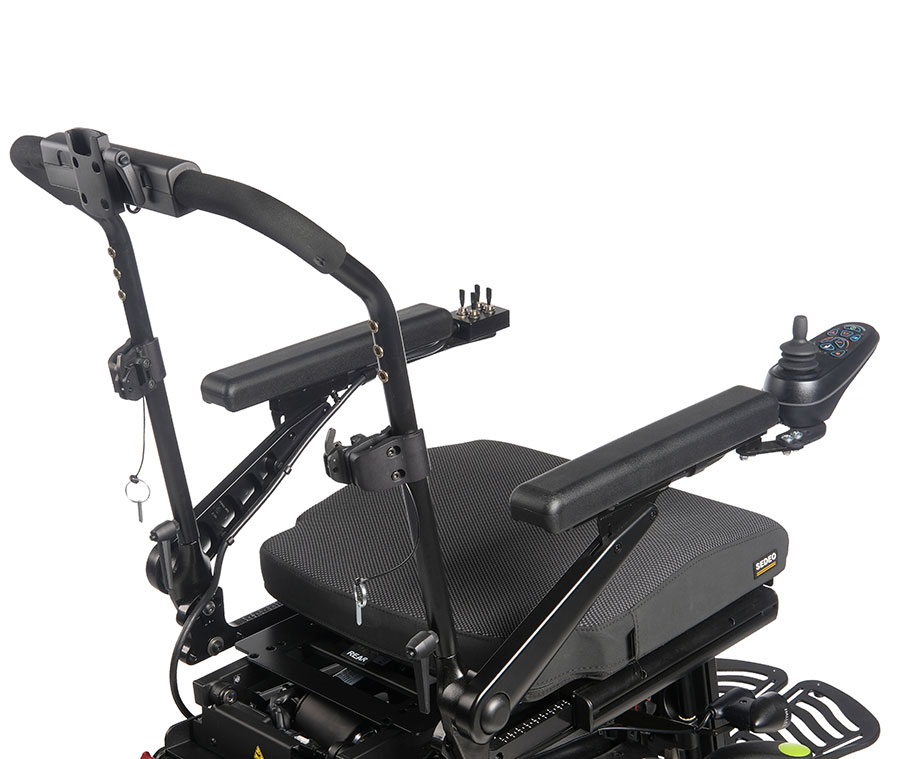

SEDEO LITE - Adjustable Seating

The SEDEO LITE seating system offers the height adjustable sling back with adjustable straps and a range of optional comfort cushions including two seat cushions and four back cushions with adjustable straps and different contours for a better comfort and positioning.

  • With in-built adjustment your SEDEO LITE seat can be adjusted to perfectly fit you now and in the future. If your needs change, the simple one tool adjustment means the seat width can be altered between 15 and 22 inches and the seat depth can be adjusted between 16 and 22 inches. Best of all, these adjustments can all be made with one tool!

  • What do you look for in a seating system? Powered options? A comfortable cushion? Transfer bars? Whatever your requirements the SEDEO LITE'S comprehensive range of options means you can get exactly what you want without the need for special requests. And if your requirements are really bespoke? There’s always our Built-4-Me department on hand to create something truly tailored to you.

  • SEDEO LITE offers the height adjustable sling back with adjustable straps, and a range of optional comfort cushions. The NEW SEDEO LITE seating offers a high level of comfort, two ranges of contourings and with tension adjustable straps you can be ensured your positioned right in the chair.


    JAY cushions and backs and are also compatible with SEDEO LITE frame to cover higher clinical needs.

  • Different positioning elements are available like swing away lateral thoracic supports, thigh supports and knee supports. All of them are easily swing away and detachable. The integrated seat rail offers many options for mounting the different positioning elements.

SEDEO LITE - Adjustable Seating

Control at your fingertips

Control your environment with the Q400 M SEDEO LITE and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read HD display and simple to control paddle switches allow for intuitive operation.

CONNECT
Seamlessly take control of your environment using the integrated Infra Red functionality. Control your TV, docking stations and other home entertainment systems easily via your joystick.

BLUETOOTH & IDRIVE
Control your phone, computer, tablet and any other Bluetooth and i-devices with this useful optional extra. Connect and control up to four devices.

QUICKIE PATENTED ASSIGNABLE BUTTONS
Change the function on any button on your joystick to any command you desire, thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons, for quicker, simpler and smoother access to commonly used functions without having to use your joystick.

Switch-It Controls

If driving with a traditional joystick is not the best option, alternative drive controls allow you to fully experience your Q400 M SEDEO LITE powered wheelchair's driving capabilities and benefits.

Find out More
Switch-It MicroGuide Mini Proportional Joystick

SWITCH-IT MicroGuide

The Mini-Proportional Joystick with a light operating force

Switch-It MicroPilot Joystick

SWITCH-IT MicroPilot

The Mini-Proportional Joystick with pure force operation

VersaGuide Compact Joystick by Switch-It

SWITCH-IT VersaGuide

Compact proportional control

Dual Pro™ Head Controls by Switch-It

SWITCH-IT Dual Pro™

Truly proportional head array for intuitive driving

Switch-It Switched Head Arrays Head Controls

SWITCH-IT Switched Head Arrays

Switched head control

Switch-It TouchDrive 2 Drive Controls

SWITCH-IT TouchDrive 2

Touchscreen proportional controller

Dimensions
Width:610 - 620 mm
Length:Max. 1130 mm
Seat Width:385 - 560 mm
Seat Height:415 - 490 mm
Seat Depth:410 - 560 mm
Backrest Height:460 - 510 mm
Back Recline:85° to 120°
Turning Diameter:560 - 630 mm
Performance/Weights
Max. Range:Max. 40 km (with 80 Ah batteries)
Speed:6/10 kph
Batteries:50 Ah, 60 Ah, 80 Ah
Maximum Safe Slope:
Max Kerb Climb:100 mm
Electronics:VR2, R-Net
Min. Wheelchair Weight:130 kg
Maximum User Weight:136 kg

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Frequently Asked Questions

You can program and download software profiles at www.sunmedwebiq.com

The charge indicator that's built into the charger should notify you. However you should always consult your user manual for the exact instructions for your power wheelchair model.

Yes, it's advisable to recharge the batteries every night - regardless of their use during the day. It's especially important to fully-charge your power wheelchair before first-use. If you don't recharge the batteries regularly, it will reduce their ability to hold power.

No. Static electricity is a natural phenomenon and does not come from your powerchair's batteries.

Our Built-4-Me customisations team can help to provide customisations that go above and beyond the standard options that are generally available to order. They'll make every effort to provide you with a safe, reliable solution that matches your needs.
