Seating / JAY / Wheelchair Backs / Shape backrest

Shape backrest

Premium tension adjustable backrest for greater support and comfort.

Premium tension adjustable backrest for greater support and comfort.

Combining a highly adjustable strap system with a soft and breathable upholstery, the JAY Shape is a lightweight and foldable solution for fixed or semi-reducible spinal postures. The lateral supports maximise the benefit of this backrest when a more complex, non-symmetrical support surface is required. The backrest can be customised with spine alignment components for maximum surface contact to optimise the pressure distribution and support for fixed postures such as kyphosis, scoliosis, hyper lordosis or rib cage assymmetries.

Request Brochure

From £193

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorised dealer for a detailed quote.

Crash Tested JAY Shape Wheelchair Backrest
Premium Tension Adjustable Upholstery

Premium Tension Adjustable Upholstery

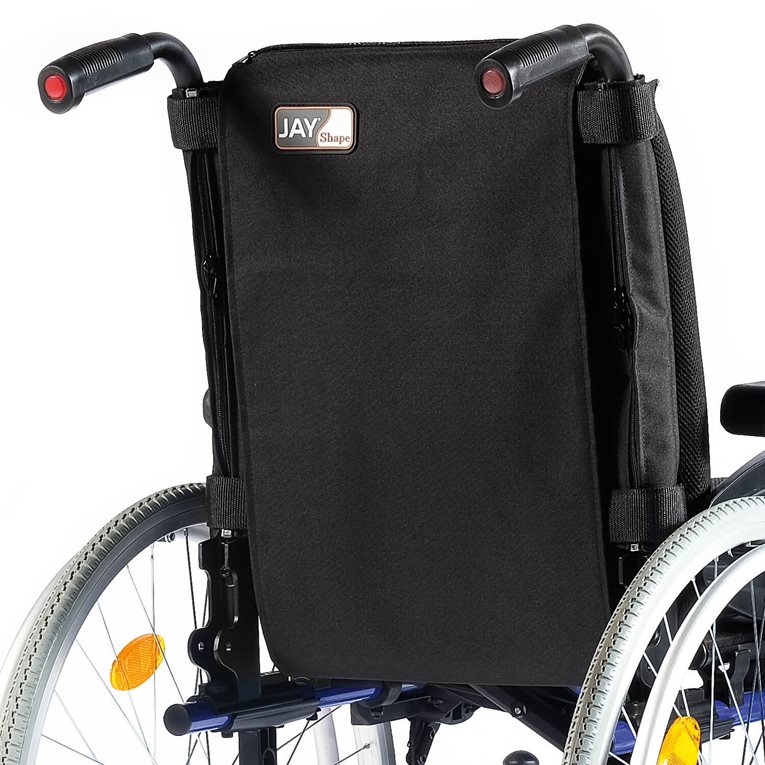

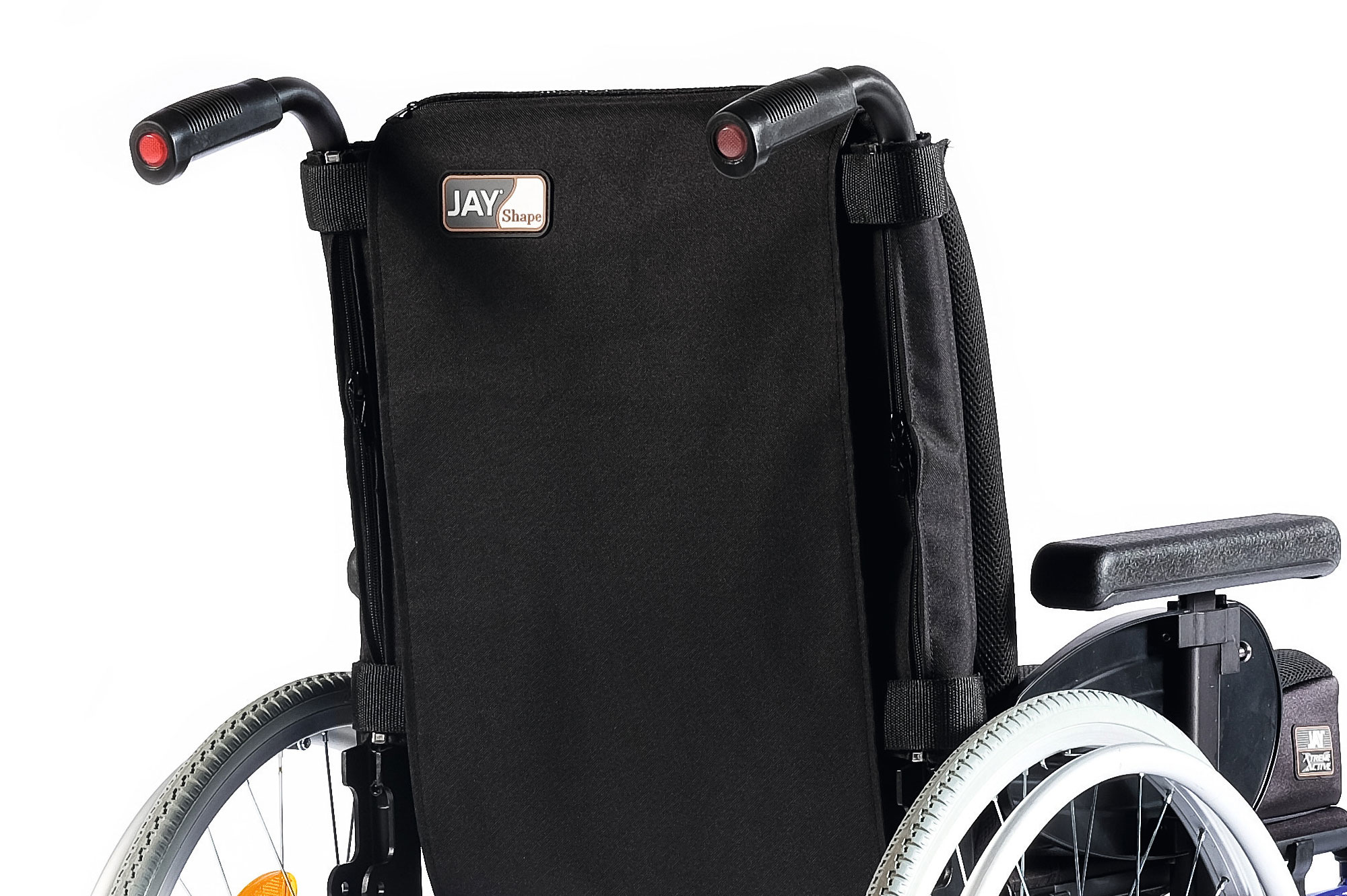

The JAY Shape wheelchair backrest offers a quick and simple field-adjustable strap system. Wide straps facilitate the adjustments and provide a stable and comfortable support surface.

The two vertical zippers allow easy mounting onto the backposts and mounting of laterals at the backposts without interfering with the strap system. This ensures a greater compatibility for more complex postures.

Exceptional Comfort and Breathability

Exceptional Comfort and Breathability

The 3cm thick soft foam overlay supports the adjusted shape of the strap system to offer maximum spinal support and comfort. The highly breathable 3DX™ spacer fabric of the cover increases the air flow and vents heat and moisture effectively to ensure the skin stays cool and dry. The JAY Shape has an intgral flap to cover the gap between the cushion and backrest.

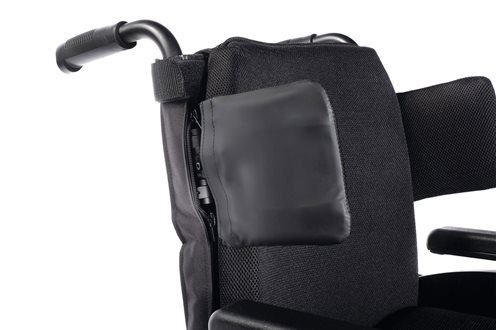

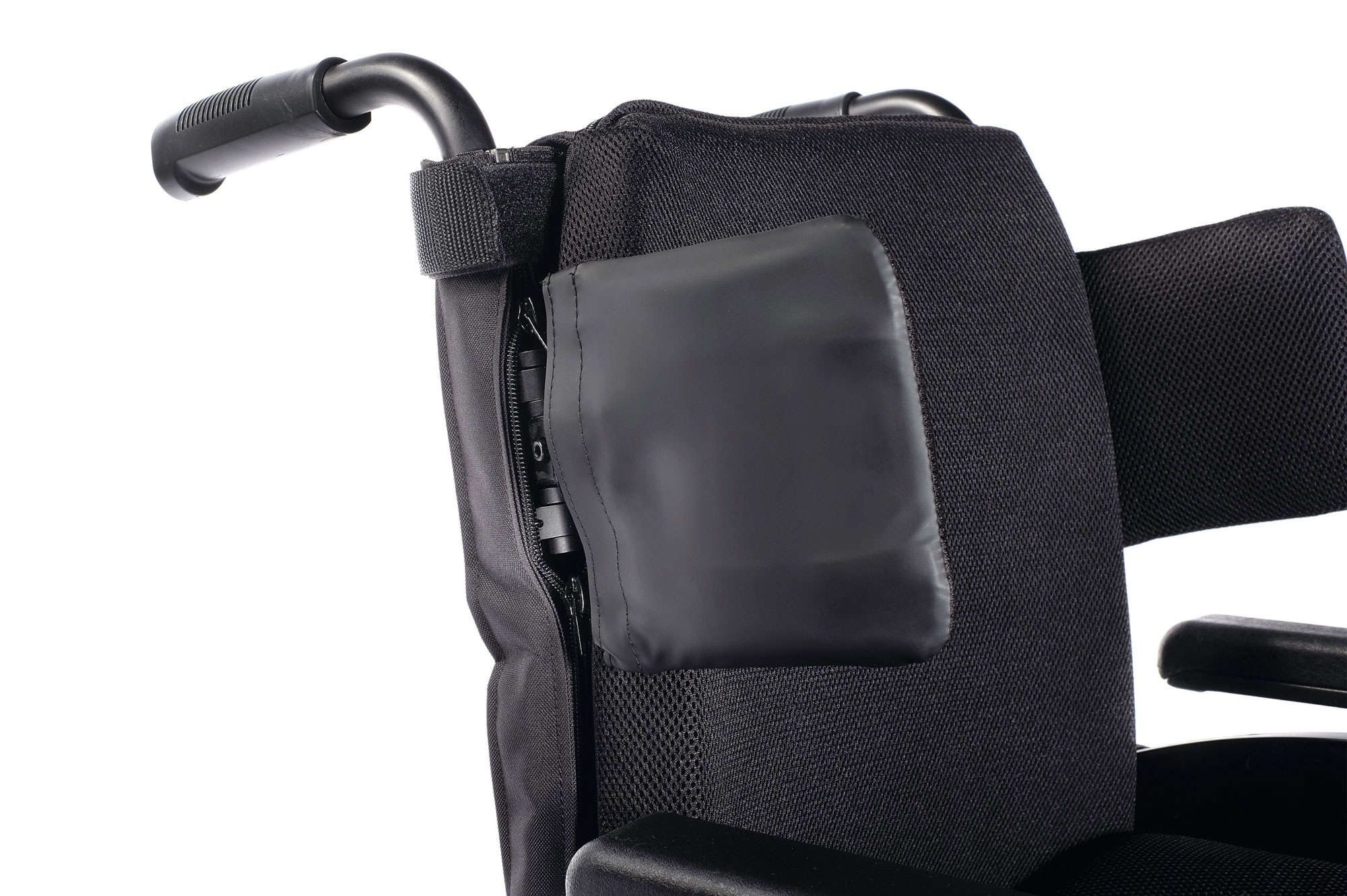

Lateral Supports for Advanced Positioning

Lateral Supports for Advanced Positioning

The JAY Shape wheelchair backrest is available with lateral supports for advanced trunk positioning to correct or support a lateral collapse or scoliosis.

The lateral supports are multi-adjustable in angle, width, depth and height which allows them to be precisely psotitined for each individual. The clamps are compatible with most common backrest tube sizes.

Receive a Brochure and Price Guide by Email

Under 18? Please don't provide us with any personal information. Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

Dimensions
Width:360mm - 480mm (in 20mm increments) / 36 cm - 48 cm (in 2 cm increments)
Height:400mm / 460mm / 500mm - (40cm / 46cm / 50cm)
Weights
Maximum User Weight:135kg (21.3 stone)
Product Options
Cover Type:Microclimatic cover with spacer fabric

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
